Description
| Brand | JB Microscope |
| Viewing Head | 45° inclined binocular head with fixed eyepiece tube, inter-pupillary range: |
| 52mm – 76mm, with click stop and interlock mechanism | |

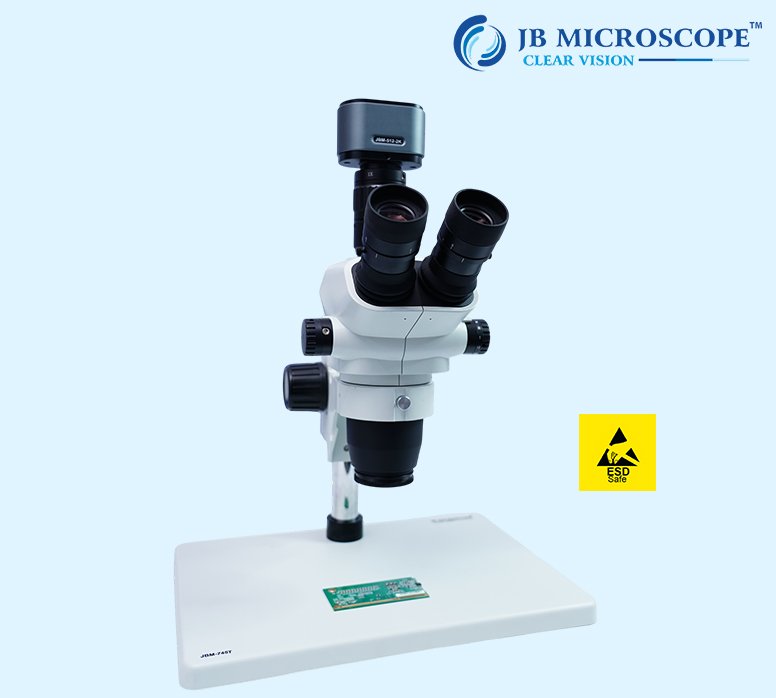

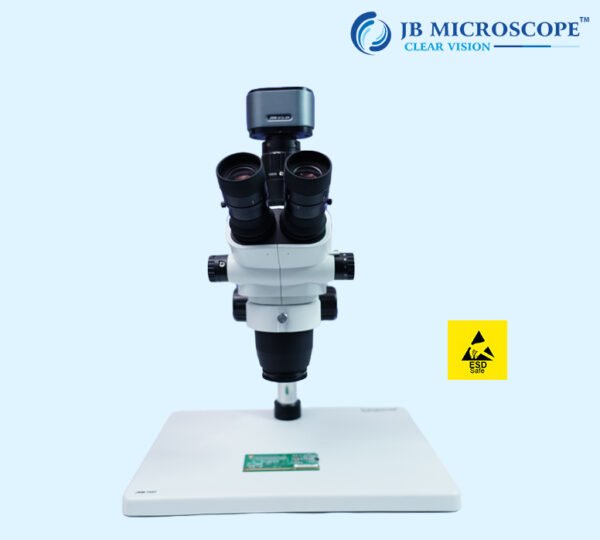

| 45° inclined trinocular head with fixed eyepiece tube, inter-pupillary range: | |
| 52mm – 76mm, with click stop and interlock mechanism | |
| Eyepiece | High eye-point wide field plan eyepiece PL10X/22mm, with adjustable diopter |
| Main Objective | Zoom objective 0.67X – 4.5X, |
| working distance | 110mm |
| Auxiliary Objective | 0.5X/177mm, 0.7X/120mm, 1.5X/47mm |
| Stand | Arm stand with fixed focus holder |
| Pillar stand, can be equipped with different focus holders | |
| Base | Plan base Base with illumination |
| Camera adapter | 0.35X/0.5X/0.65X/1X C-mount adapted |
| Others | Precision measuring stage, gem clip |
OPTIONAL
ESD SAFETY
JBM-PL-45 Series microscopes feature a specialized ESD Safe coating, protecting
sensitive components from electrostatic discharges
Click stop function
Zoom hand wheel with click stop as a key improvement ensures
accurate amplification,is very useful for sample dimension confirm.
DOF and flatness
Greenough optical system with convergence angle of 10 degree, and
working withwide field plan eyepieces, ensures the excellent
flatness and depth of field.
Diverse auxiliary objectives
Three auxiliary objectives 0.5x/0.7X/1.5x for option, to expand
JBM-PL45 magnificationfrom 3.3x to 135x. The Max. working
distance is 177mm while the Min. is 47mm, to meet all the
requirements from different applications.
