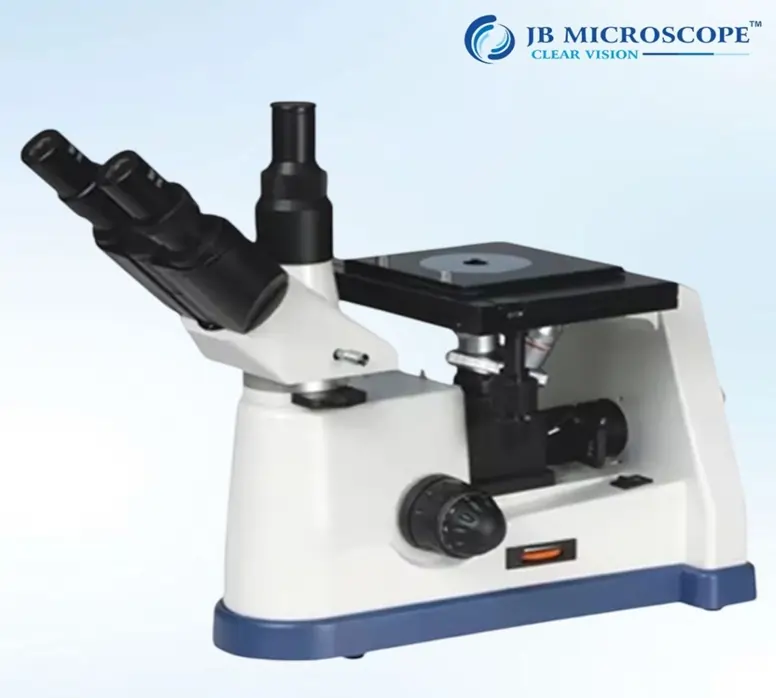

Description
| Head | Compensation Free Trinocular, Inclination of 45 Degree |
| Eyepiece | Wide field WF10X/18mm |
| DIN Plan Metallurgical Objectives | 4X/0.1 W.D. 25mm |
| 10X/0.25 W.D. 11mm | |
| 20X/0.4 W.D. 9mm | |
| 40X/0.6 W.D. 3.8mm | |
| Flashboard Filter | Blue Filter |
| Green Filter | |
| Yellow Filter | |
| Focus System | Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm. |
| Nosepiece | Quadruple |
| Stage | Double Layer Mechanical (Size172mmX142mm,Moving Range:30mmX30mm) |
| EPI-Illumination | Apertrue Iris Diaphragm and Field Iris Diaphragm |
| Light Source | 12V/20W,AC 85V-230V Halogen Bulb,Adjustble Brightness |
| Polarizing Device | Analyzer rotatable 360°, Polarize &Analyzer can be moved in/out of the Optical Path |
| Checking Tool | 0.01mm Micrometer |
