Description
Application METALLURGY
Examining grain boundaries • Phases • Heat treatment effects • Heat treatment effects QUALITY CONTROL (QC) & FAILURE ANALYSIS Inspecting for cracks • Porosity • Surface defects • Coating thickness on manufactured parts ELECTRONICS MANUFACTURING Soldering inspection (PCBA) • Component verification • Defect analysis on circuit boards PRECISION ENGINEERING
Measuring tool wear • Inspecting small machined parts • Analyzing material structures

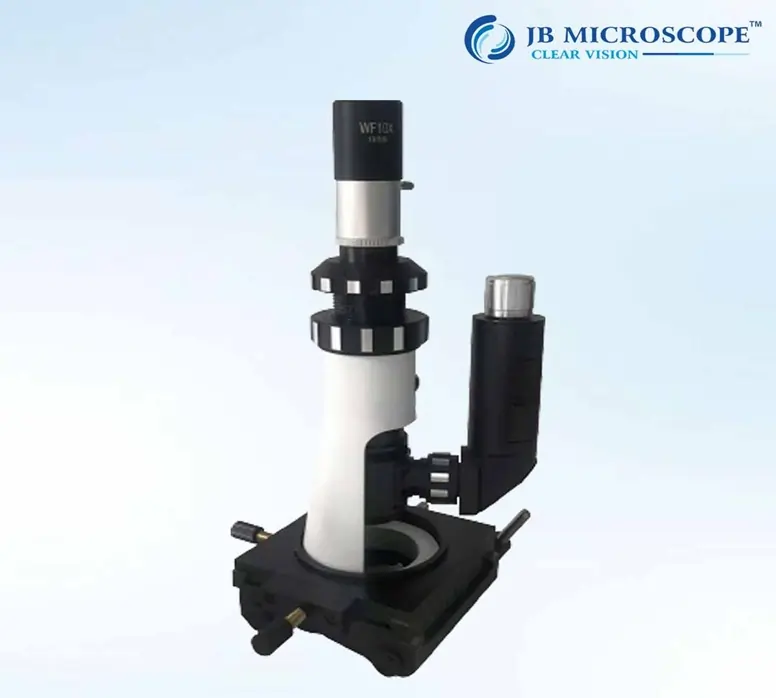

| Brand | JB MICROSCOPE |
| Model Number :JBM-PL7 | JBM-M20 |
| Eyepiece | WF10X/18mm |
|
Plane metallographic objective |
4X/0.25, W.D.= 10mm 40X/0.60 W.D.= 0.5mm |
|
Focusing |
Coaxial coarse and fine focusing, coarse stroke: 23mm, fine stroke: 1.5mm |
| Illumination | Built-in LED light, brightness adjustable |
| Battery working time | Around 40 hours |
| Battery charging time | 3 hours (Don’t more than 8 hours) |
| Stand | Magnetic stand |
| Power supply | 220V 50Hz-60Hz |
| Package box | Silver carry box |
